Uratech VDI 60 CNC Tool carts

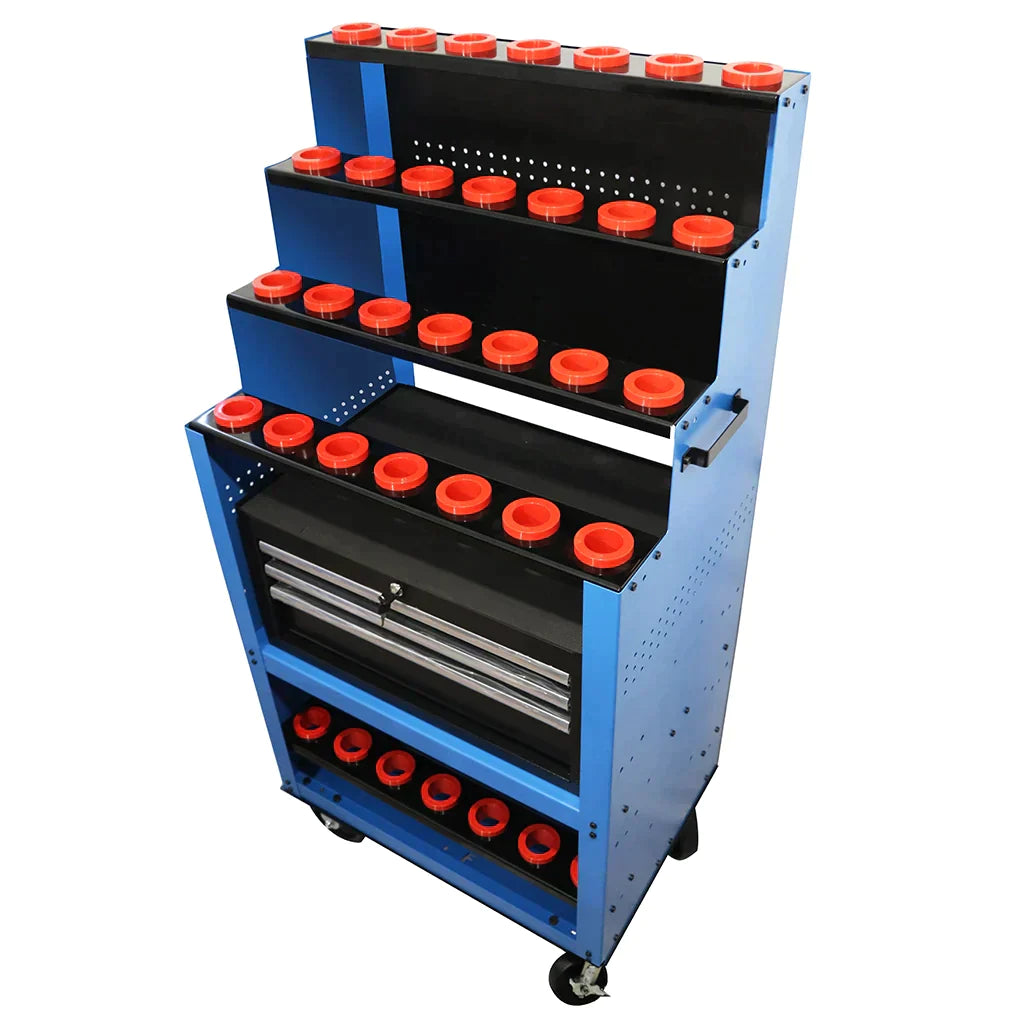

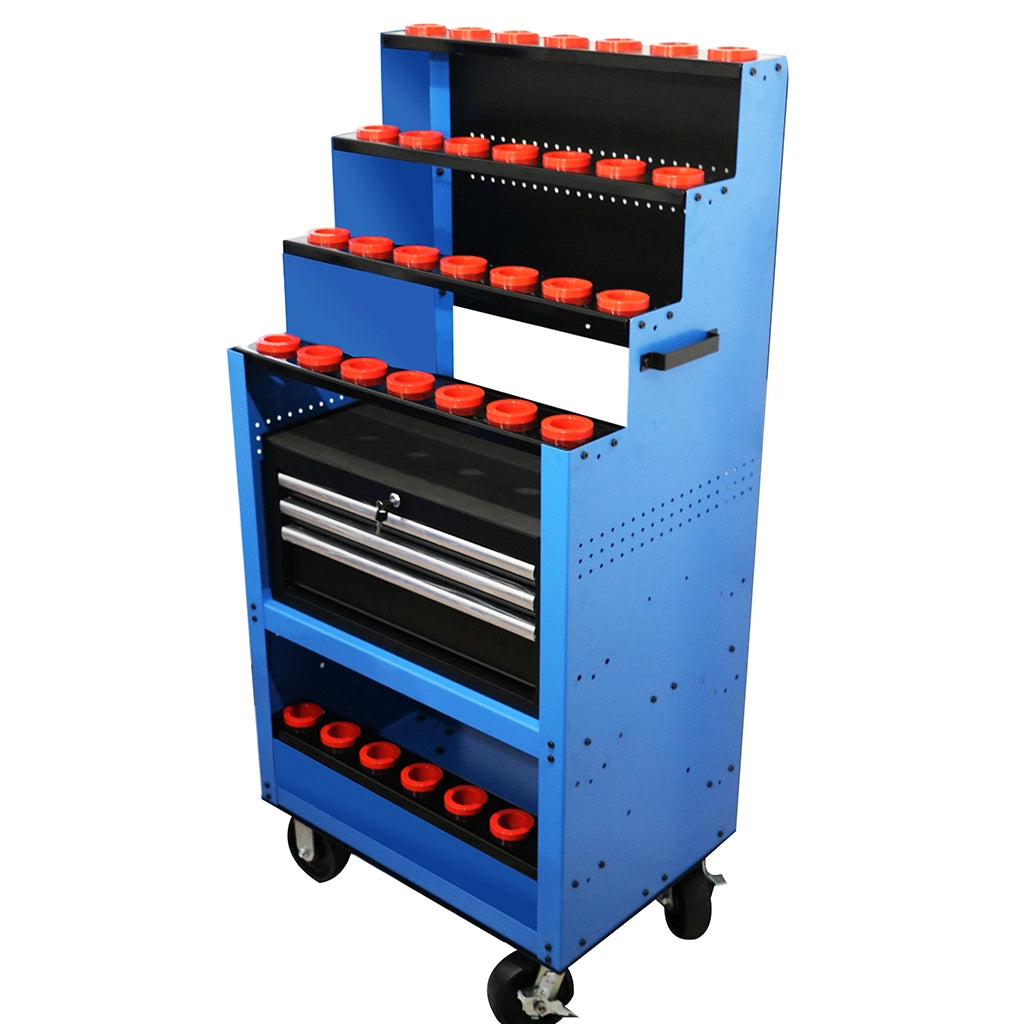

• VDI 60,  Heavy Duty CNC Tool cart  , Uratech USA Inc
• Ideal for VDI 60 type CNC holders
• 16 gauge steel, Powder coated, Blue color.
• 36  Holders Capacity

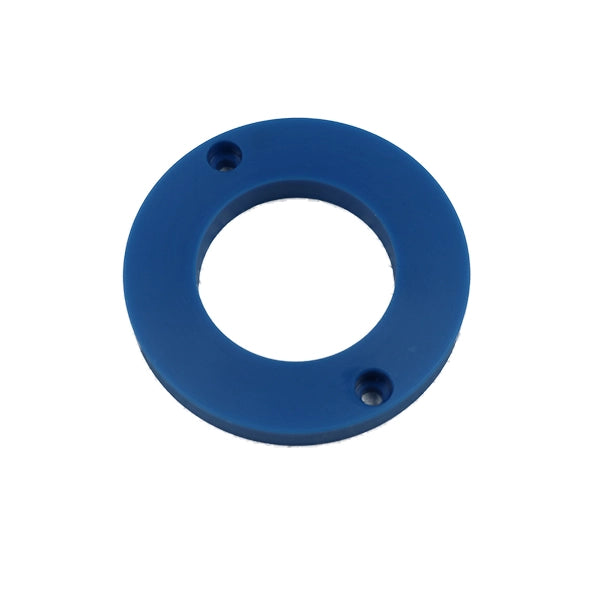

• Durable Blue Nylon Inserts.
• Inserts color shown in the gallery is red ( reference only ), Inserts color for this product will be blue color only
• Nylon inserts inner diameter : 2.375"

• Nylon inserts outer diameter :  4.000" ,  0.500" Thick
• Distance between inserts ...... : 4.750"

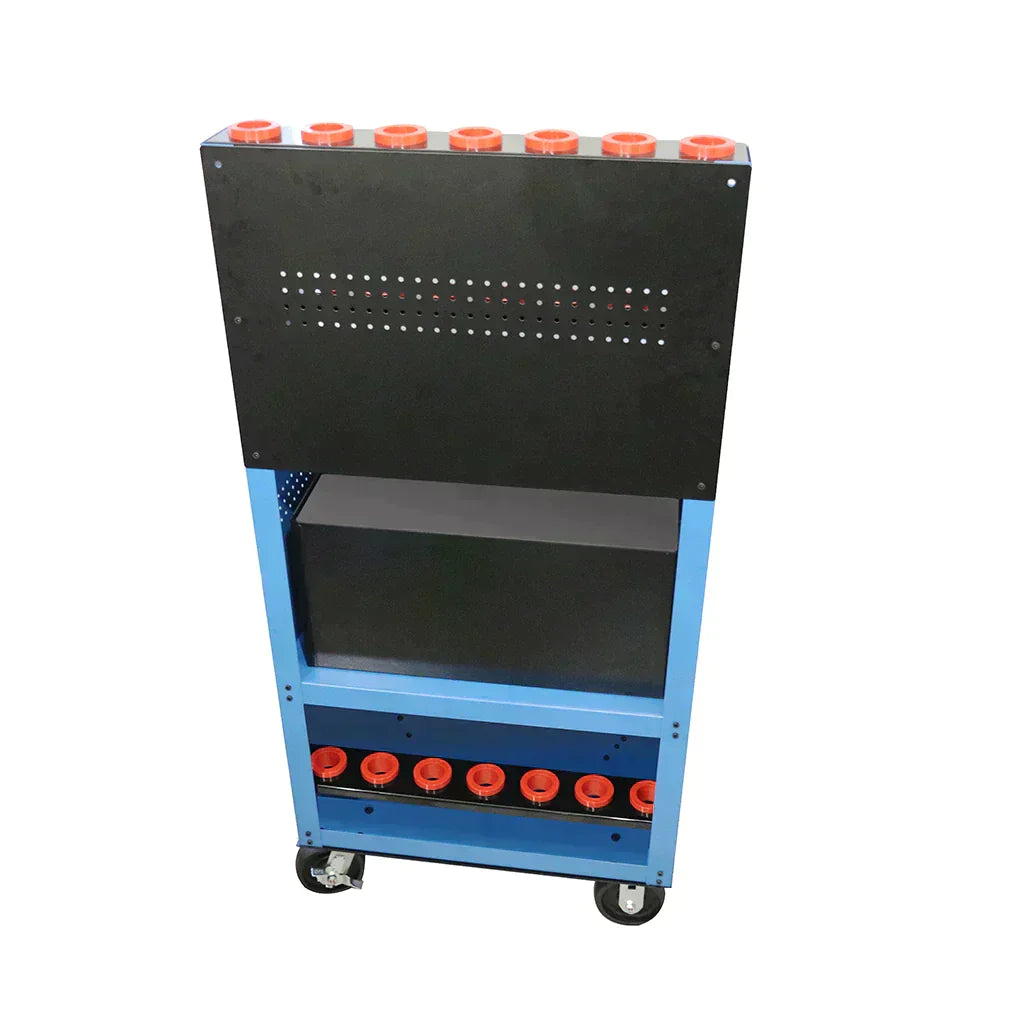

• Pegboard holes on the back side of the cart and 2 sides to implement 5S.

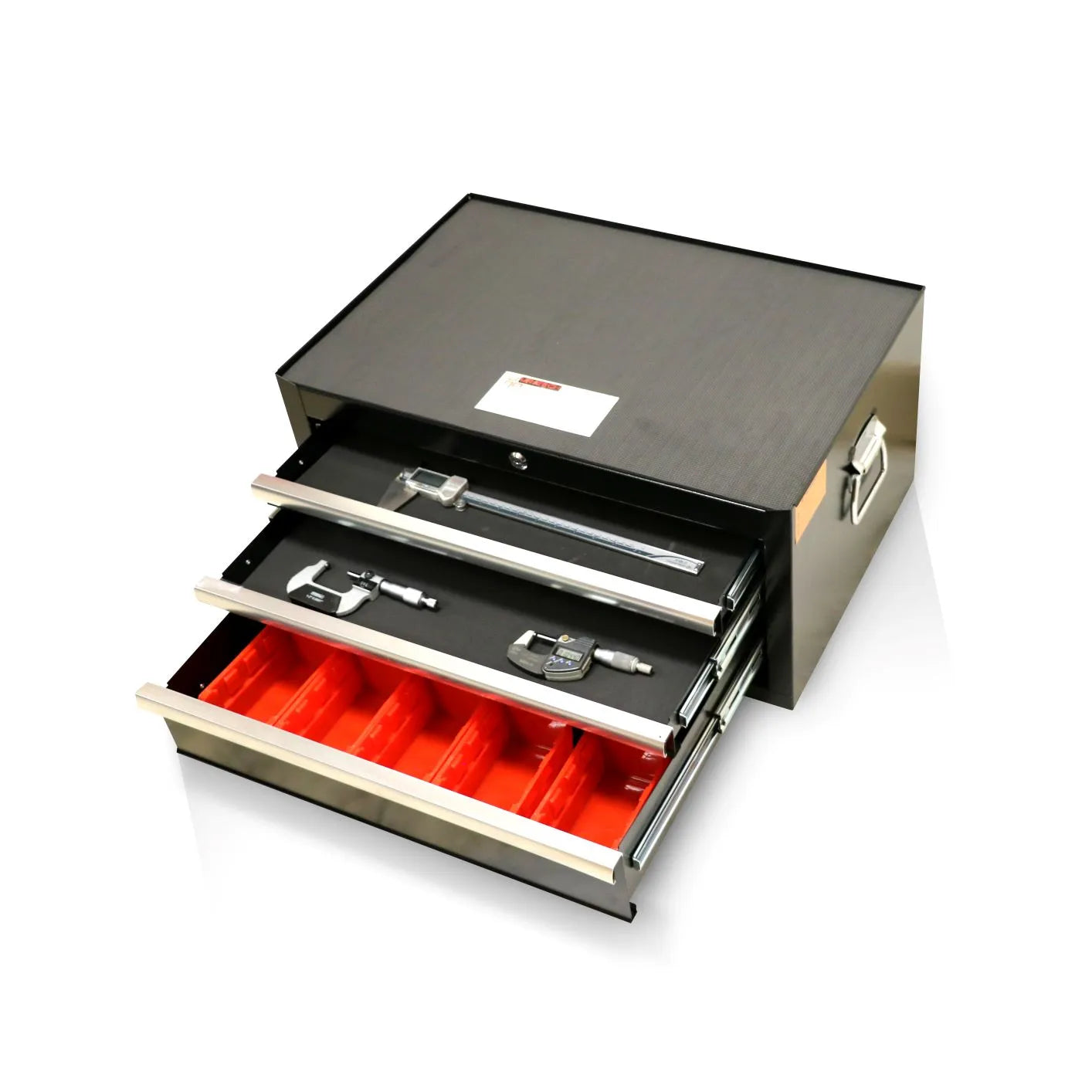

• 3 Drawer with Ball bearing slides and lockable option to secure valuables,
• Drawer dimension…….. :  26.5 “ x 18.0” wide x 12.0” ( Height )
• Top & Middle Drawer clear space…..: 1.500” x 15.000” x 22.0”
• Bottom Drawer clear space……………: 4.000” x 15.000” x 22.0”
• Each Drawer Holds 75 lbs
•  Keyed Internal Locking System

• Steel  Handle
• Space in the  bottom tray is for consumables
•  Industrial Casters ( 4000 lbs capacity, 2 swivels with brake and 2 rigid )
• Tool cart weight …………………: 190 lbs
• Tool cart dimensions ……… : 20.0”  x  40.0” x  62.0” ( Height)
• Assembled and Ready to use, crated in a pallet
• Lead time : 2 Weeks

If you have any questions, call us at 1 800 813 0537 or send an email to Info@cnctoolstoragesolutions.com
