Description
- CNC Tool holder cabinet from Uratech USA Inc

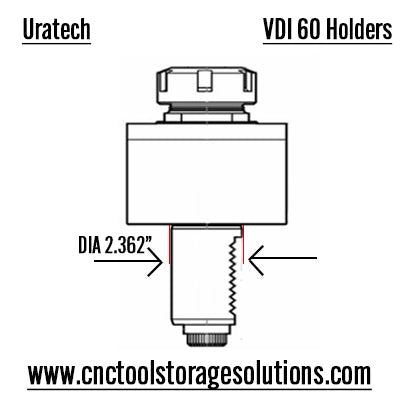

- Ideal VDI60 type Holders

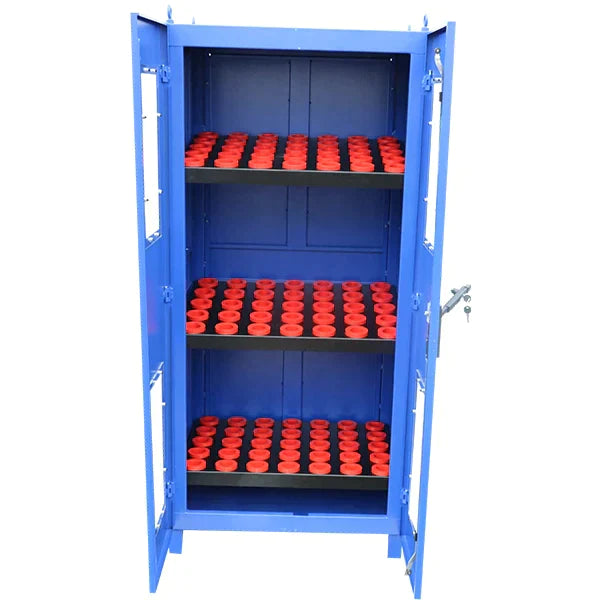

- Durable Blue Nylon Inserts
- Nylon inserts inner diameter ......... : 2.375" ( 0.500" thick )
- Cold rolled steel, Powder coated – Blue color.
- Front door frames, 2.0 mm thick, Cold rolled steel
- Trays and other materials, 16 Gauge steel, 1.5mm Thick
- Top 2 trays are inclined at 12 Deg for convenience.
-
Welded Construction & ready to use.
- No Assembly required.

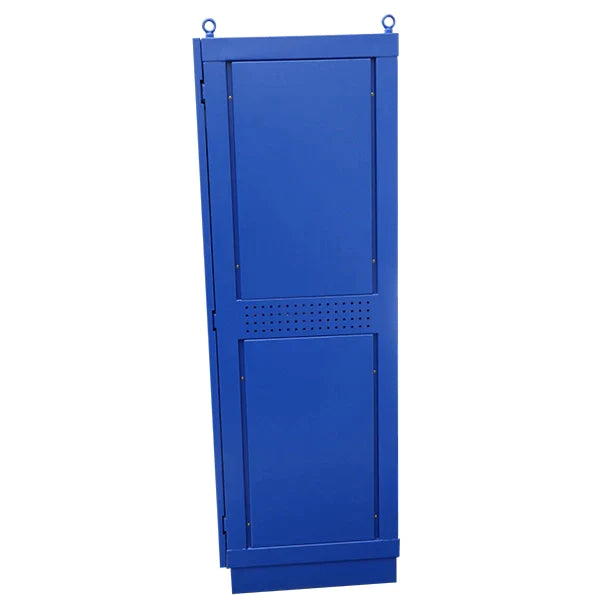

- Pegboard holes are incorporated on the side doors to organize consumables.
- 4 Eye bolts are installed on the top of the cabinet to lift using crane.
- Fork Lift Access provided.
- Cabinet size : 22.000” x 32.000” x 65.000” ( Assembled Height )
- Weight: 390 lbs
- Front doors can be locked and secured ( 2 sets of keys)
- Clear Acrylic sheets installed on front doors for viewing.

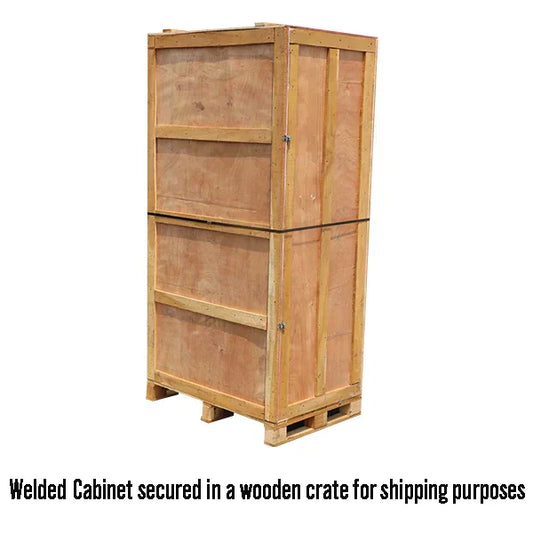

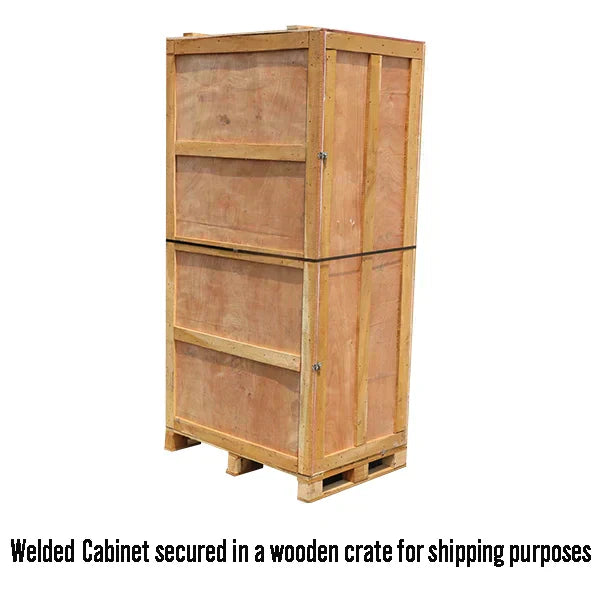

- Crated in a wooden box with shipping bolts.
- Contact us for more information at Info@cnctoolstoragesolutions.com
- Call us at 1-800-813-0537 / 716 383 4124
Additional Information
Product Weight in Lbs : 425 Lbs
Product Dimension: 31.0" x 41.0" x 81.0" , Crated in a wooden Box, will be shipped as a LTL shipment
Package Weight in Lbs:
Package Dimension:
Product Dimension: 31.0" x 41.0" x 81.0" , Crated in a wooden Box, will be shipped as a LTL shipment
Package Weight in Lbs:
Package Dimension:
