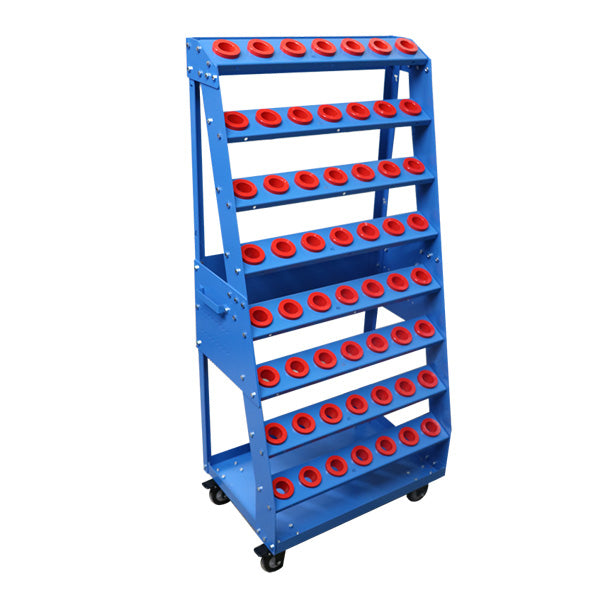

- 40 Taper, CNC Tool cart – Ladder model from Uratech USA Inc
- Ideal for CAT 40, BT 40, DV 40, ISO 40, and NMTB 40 CNC Tool Holders
- 56 Holders' capacity
- Durable red nylon inserts
- Nylon inserts inner diameter: 1.810" and tapered
- Industrial casters rated at 1400 lbs (2 swivels , 2 rigid)
- Trays angled at 10 Deg for convenience in handling.
- The bottom tray is for consumables.
- Trays, Cold rolled steel, 16 Gauge (0.063” thick) , Powder coated, Sky Blue color
- 0.125” thick Steel Frame, Powder coated
- Steel L-Angle, 0.125” Thick, Powder coated
- Peg board holes on both sides of the cart.

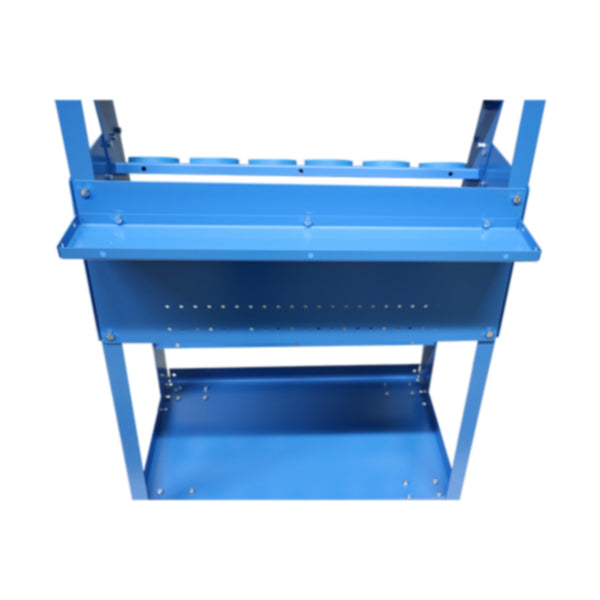

- Small tray installed in the back of the cart with a peg board for consumables.
- Tool cart weight:………..: 135 Lbs
- Cart Dimensions ……….: 20.000” X 30.000” X 60.000” ( Assembled Height)
- Assemble in 6 Steps.
- For more information, email us at Info@cnctoolstoragesolutions.com or call us at 1 800 813 0537 / 716 383 4124
Additional Information
Weight : 135 Lbs
Dimension: 31.0" x 31.0" x 66.0"
