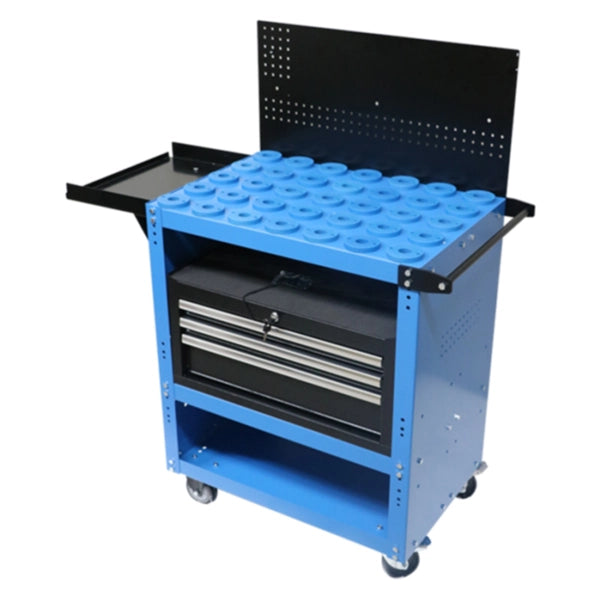

Uratech VDI40 Heavy duty CNC Tool cart - Secured model

• VDI 0 , Heavy duty CNC Tool cart – Secured model  with Drawers ( Lockable ), Uratech USA Inc
• Ideal for VDI40 type  CNC Holders
• All trays, Cold rolled steel, 16 Gauge, Powder-coated, Sky Blue color

• Durable Blue Nylon Inserts.
• Nylon inserts inner diameter : 1.590"

• Nylon inserts outer diameter :  3.000" ,  0.500" Thick
• Distance between inserts ...... : 4.250"
• Pegboard – 11 Gauge (0.125” Thick ) – Cold rolled steel, Powder-coated

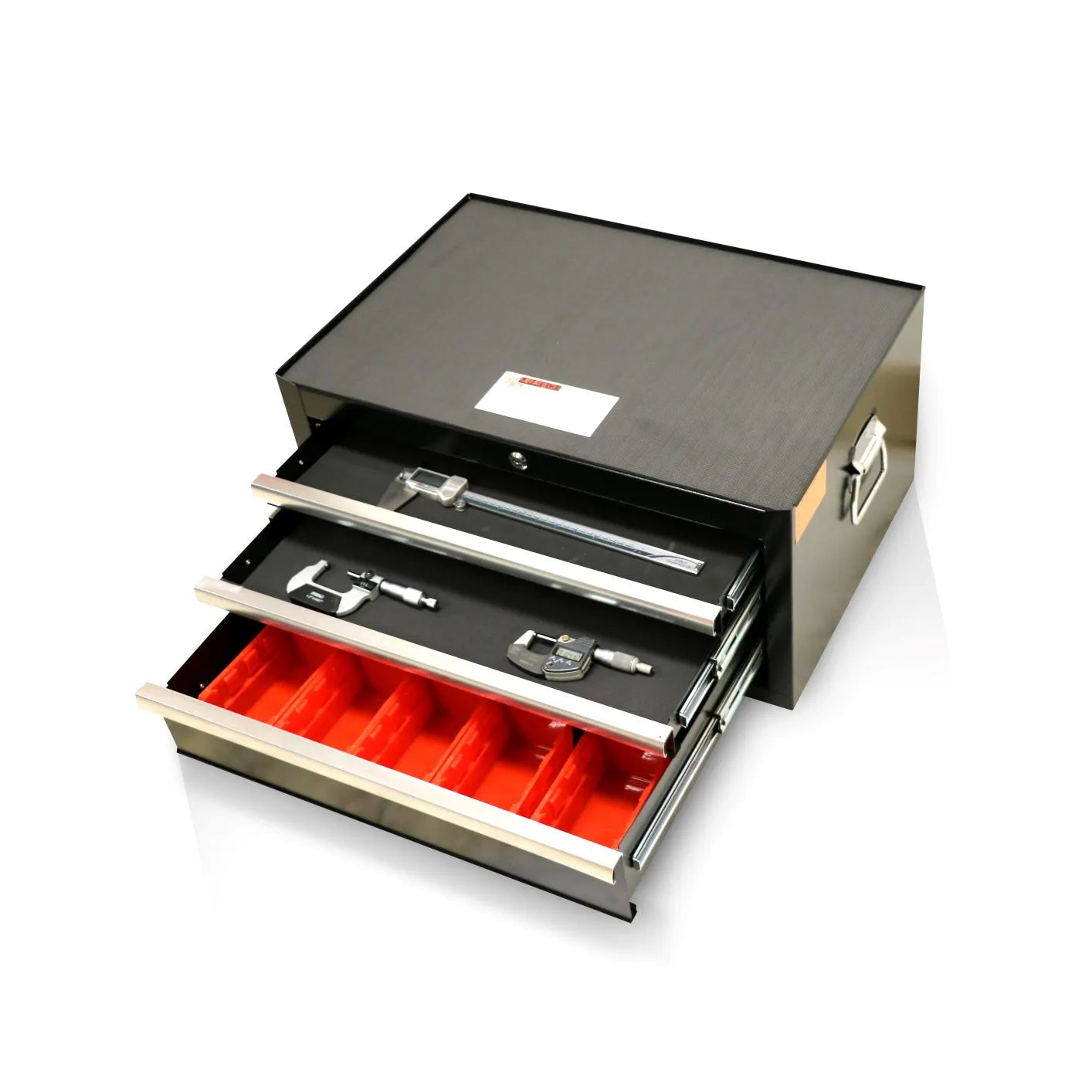

• 3 Drawer with Ball bearing slides and lockable option to secure valuables,

            Drawer dimension…….. :  26.5 “ x 18.0” wide x 12.0” ( Height )

           Top & Middle Drawer clear space…..: 1.500” x 15.000” x 22.0”

           Bottom Drawer clear space……………: 4.000” x 15.000” x 22.0”

            Each Drawer Holds 75 lbs, Keyed Internal Locking System .

• Small support tray in the front and bottom trays are for consumables
• Black Anodized Aluminum Handle
• 6.0" diameter Heavy duty Industrial Casters ( 4000 lbs capacity, 2 swivels with brake and 2 rigid )
• Tool cart weight…………..…: 120 lbs
• Tool cart dimensions ……… : 20.0”  x  30.0” x  38.0” ( Assembled Height without Peg board )
• Assembled and ready to use, crated in a pallet
• Pallet Size : 33.0” x 31.0” x 38.0” ( Height ) ( 180 LBS )
• Will be shipped as a LTL shipment only

If you have any questions, please contact us via email at Info@cnctoolstoragesolutions.com or call us at 1 800 813 0537
